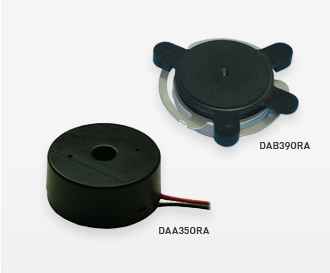

Dynamic Exciters
Electrodynamic exciters employing coils and magnets that make full use of miniaturization technology and acoustic-related technology.
Point
- Attaches to solid object and vibrates it to make sound
- Excites multiple oscillation modes for wide directivity
- Easily becomes watertight as it needs no opening as sound outlet
- Rigid structure for robust circuitry
- Light and compact, yet gives high output
Specifications
| Model Name | DAA350RA | DAB390RA |
|---|---|---|
| Impedance | 16Ω ± 2.4Ω | 8Ω ± 1.2Ω |
| Sound Pressure(*) | Typ. 77dB at 200Hz | Typ. 98dB at 500Hz |
| Typ. 113dB at 500Hz | Typ. 92dB at 1kHz | |
| Typ. 102dB at 1kHz | Typ. 89dB at 2kHz | |
| Typ. 89dB at 2kHz | Typ. 91dB at 5kHz | |
| Minimum Resonant Frequency (*) | 500Hz | 570Hz |
| Rated Input | 1W | 1W |
| Operating Temperature | -40 ~ +105°C | -20 ~ +70°C |
| Storage Temperature | -40 ~ +105°C | -40 ~ +85°C |
| Dimensions | ø35 - h15 mm | ø39 - h11.5 mm |
| Weight | 42g | 25g |
- *Sound pressure changes depending on the mount surface.
- *Measured with 1W input, microphone at 10cm distance, Open air on rear side.
<DAA350RA> Attached to acrylic panel (PMMA) 15cm(H)×15cm(W)×2mm(D)
<DAB390RA> Attached to acrylic panel (PMMA) 10cm(H)×20cm(W)×2mm(D)
Appearance and Dimensions
- DAA350RA

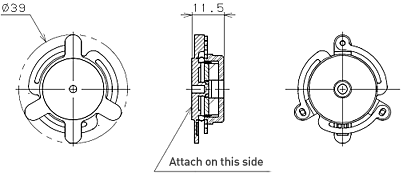

- DAB390RA
Application Examples
Automobiles, Motorcycles
EV proximity announcement, Voice guidance, Alarms, Music
Marine Motor Sports
Voice guidance, Alarms, Music
Store Displays
BGM, Product information
Signs, Display Screens
Voice guidance, Product information, BGM
Desks, Tables, Walls, Whiteboards
Presentation audio, Conference calls, Video conferences
Kitchen, Bath
Music, TV audio
