SV-12/20/32
A precision machine for heavy-duty and complex machining of tough materials.
Features
- Multi-axis control system consisting of gang tool and turret tool post
- Outstanding for high-speed machining and powerful for multiple machining functions have been incorporated,allowing the features of both to be absorbed into one machine
- Heavy-duty cutting performance by 8 to 10-station turret
- Polygon turning,simultaneous off center drilling and thread whirling allows diverse secondary machining

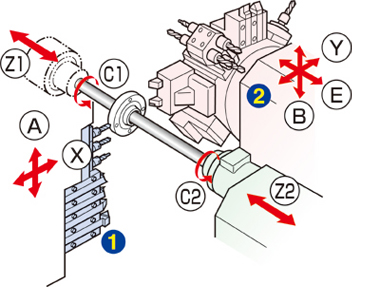

Tool Post
| Tool Post | Tooling | ||
|---|---|---|---|
| ① |  |
SV-12/20 | |
| Turning tool (□16mm) | 4 tools | ||
| Turning tool (□12mm) | 5 tools | ||
| Power-driven tool | 3 tools | ||
| ② |  |
SV-12/20 | |
| Turning tool (□16mm) | 1 tool/station | ||
| Turning tool (□12mm) | max.3 tools/station | ||
| Front-end working tool | max.3 tools/station | ||
| Rear-end working tool | max.3 tools/station | ||
| Power-driven tool | max.2 tools/station | ||
| ① |  |
SV-32 | |
| Turning tool | 4 tools | ||
| Power-driven tool | 3 tools | ||
| ② |  |
SV-32 | |
| Turning tool | max.2 tools/station | ||
| Front-end working tool | max.3 tools/station | ||
| Rear-end working tool | max.3 tools/station | ||
| Power-driven tool | max.2 tools/station | ||
Specifications
| Item | SV-12 | SV-20 | SV-32 | ||
|---|---|---|---|---|---|
| Max.machining diameter | ø13mm(1/2in) | ø20mm(25/32in) | ø32mm (1-1/4in) |
||
| Max.headstock stroke |
Standard | 205mm(8in) | 310mm(12-13/64in) | ||
| with Gripping unit | 195mm(7-11/16in) | 300mm(11-13/16in) | |||
| Tool post configuration |
Gang type | Turning tool +Power-driven tool |
|||
| Turret type | 8 stations | 10 stations | |||
| Turning tool | Number of tools |
Gang type |
4 tools(□16mm) /5 tools(□12mm) |
4 tools (□16mm) | |
| Turret type |
1 tool/station(□16mm), 3 tools/station(□12mm) |
max.2 tools/station | |||
| Sleeve holder | Number of tools | max.3 tools/station | |||
| Max.drilling capability |
ø10mm (25/64in) |
ø14mm (35/64in) |
ø23mm(29/32in) | ||
| Max.tapping capability |
M8×P1.25 | M10×P1.5 | M12×P1.75 | ||
| Max.die cutting capability |
M8×P1.25 | M10×P1.5 | M12×P1.75 | ||
| Power-driven att. | Number of tools | Gang type |
3 tools | ||
| Turret type |
max.2 tools/station | ||||
| Max.drilling capability |
Gang type |
ø8mm(5/16in) | |||
| Turret type |
ø8mm(5/16in) | ø10mm(25/64in) | |||
| Gang type |
M6×P1.0 | ||||
| Max.tapping capability |
Turret type |
M6×P1.0 | M8×P1.25 | ||
| Max. milling capability |
ø10mm(25/64in) | ||||
| Max. slotting capability |
2mm(W)×6mm(D) | 2mm(W)×10mm(D) | |||
| Main spindle indexing angle | C-axis control | ||||
| Main spindle speed | max.12,000min-1 | max.10,000min-1 | max.7,000min-1 | ||
| Main spindle motor | 2.2kw/3.7kw | 3.7kw/5.5kw | 5.5kw/7.5kw | ||
| Dimensions (W×D×H) | 2,670×1,375×1,660mm | 2,645×1,405 ×1,680mm |
|||
| Weight | 3,400kg | 3,800kg | |||
Backworking Attachment
| Item | SV-12 | SV-20 | SV-32 | |
|---|---|---|---|---|
| Max.chucking diameter | ø13mm(1/2in) | ø20mm(25/32in) | ø32mm(1-1/4in) | |
| Max.length for front ejection | 130mm(5-1/8in) | 150mm(5-7/8in) | ||
| Rear-end working tool | Number of tools | max.3 tools/station | ||
| Max.drilling capability | ø8mm(5/16in) | ø10mm(25/64in) | ø13mm(33/64in) | |
| Max.tapping capability | M8×P1.25 | M12×P1.75 | ||
| Sub spindle indexing angle | C-axis control | |||
| Sub spindle speed | max.12,000min-1 | max.10,000min-1 | max.7,000min-1 | |
| Sub spindle motor | 2.2kw(Continuous)/3.7kw(15min.) | 2.2kw(Continuous) /3.7kw(30min.) |
||
