SR-32J type N
Sharp reduction of material costs for large-diameter/short-work.
Features
- High rigidity and output to meet the machining requirements of large-size workpieces
- Variety of functions to aid complex machining
- Examination of reduction of production costs

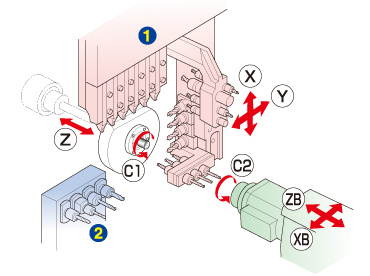

Tool Post
| Tool Post | Tooling | ||
|---|---|---|---|
| ① |  |
Turning tool | 6 tools |
| Front-end working tool | 4 tools | ||
| Rear-end working tool | 2 tools(max.4 tools) | ||
| Power-driven tool | 3-15 tools | ||
| ② |  |
Back 4-spindle unit | 4 tools |
| Stationary tool | max.4 tools | ||
| Power-driven tool | max.4 tools | ||
Specifications
| Item | SR-32J typeN | ||
|---|---|---|---|
| Max.machining diameter | ø32mm(1-1/4in) | ||
| Max.headstock stroke | Bar diameter ×2.5 (max.80mm) | ||
| Number of turning tools | 6 tools | ||
| Tool shank | □16mm×95mm-155mm | ||
| 4-spindle sleeve holder | Number of tools | Front 4 tools Rear 2 tools(max.4 tools) |
|
| Max.drilling capability | ø13mm(1/2in) | ||
| Max.tapping capability | M12×P1.75 | ||
| Max.die cutting capability | M10×P1.5 | ||
| Power-driven att. | Number of tools | 4 - 10 tools | |
| Max.drilling capability | ø8mm(5/16in) | ||
| Max.tapping capability | M6×P1.0 | ||
| Max. milling capability | ø10mm(25/64in) | ||
| Main spindle indexing angle | C-axis control/15°:OP | ||
| Main spindle speed | max.7,000min-1 | ||
| Main spindle motor | 5.5kw(Continuous)/7.5kw(15min./60%ED) | ||
| Rapid feed rate | 24mm/min(X,Y,Z,ZB,XB) | ||
| Power-driven att. spindle speed | max.5,000min-1 | ||
| Power-driven att. drive motor | 1.2kw | ||
| Dimensions (W×D×H) | 2,711×1,275×1,705mm | ||
| Weight | 3,100kg | ||
Backworking Attachment
| Item | SR-32J typeN | ||
|---|---|---|---|
| Max.chucking diameter | ø32mm(1-1/4in) | ||
| Max.length for front ejection | 125mm(4-59/64in) | ||
| Max.work projection length | 45mm(1-49/64in) | ||
| 4-spindle backworking unit | Number of tools | 4 tools | |
| Max.drilling capability | Stationary tool | ø13mm(1/2in) | |
| Power-driven tool | ø6mm(15/64in) | ||
| Max.tapping capability | Stationary tool | M10×P1.5 | |
| Power-driven tool | M5×P0.8 | ||
| Sub spindle indexing angle | C-axis control/15°:OP | ||
| Sub spindle speed | max7,000min-1 | ||
| Sub spindle motor | 2.2kw(Continuous)/3.7kw(15min./60%ED) | ||
