SR-20J type N
Optimum performance to the needs of times.
Features
- Cost reduction by reducing the remnant bar length
- A control system and high-speed feed to reduce dramatically non-cutting time
- A structure of high rigidity thanks to Star original design
Tool Post

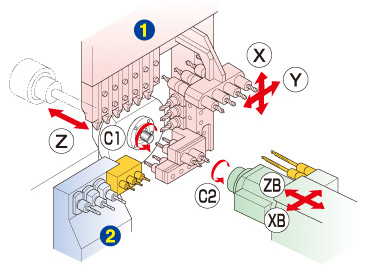

| Tool Post | Tooling | ||
|---|---|---|---|
| ① |  |
Turning tool | 6 tools |
| Front-end working tool | 6 tools | ||
| Rear-end working tool | 4 tools | ||
| Power-driven tool | 3-10 tools | ||
| ② |  |
Back 4-spindle unit | 4 tools(6 tools:OP) |
| Stationary tool | max.4 tools | ||
| Powered tool | max.6 tools | ||
Specifications
| Item | SR-20J typeN | ||
|---|---|---|---|
| Max.machining diameter | ø20mm(25/32in) | ||
| Max.headstock stroke | Bar diameter ×2.5 (max.55mm) | ||
| Turning tools | Number of turning tools | 6 tools | |
| Tool shank | □12mm×100-135mm □12.7mm×100-135mm |
||
| 4-spindle sleeve holder | Number of tools | Front 4 tools Rear 2 tools(max.4 tools) |
|
| Max.drilling capability | ø10mm(25/64in) | ||
| Max.tapping capability | M8×P1.25 | ||
| Power-driven att. | Number of tools | 3-10 tools:(option is included) | |
| Max.drilling capability | ø8mm(5/16in) | ||
| Max.tapping capability | M6×P1.0 | ||
| Max. milling capability | ø10mm(25/64in) | ||
| Max. slotting capability | 1.5mm(W)×4mm(D) | ||
| Rapid feed rate | 35mm/min(X,Y,Z,XB,ZB),198,000°/min(c) | ||
| Main spindle indexing angle | C-axis control | ||
| Main spindle speed | max.10,000min-1 | ||
| Main spindle motor | 2.2kw(Continuous)/3.7kw(15min./60%ED) | ||
| Double sleeve holder for deep hole | Number of tools | 2 tools | |
| Max.drilling capability | ø8mm(5/16in) | ||
| Max.depth of hole | 100mm(3-15/16in) | ||
| Power-driven att. spindle speed | max.8,000min-1 | ||
| Power-driven att. drive motor | 1.2kw | ||
| Coolant tank capacity | 170ℓ | ||
| Dimensions (W×D×H) | 2,250×1,200×1,700mm | ||
| Weight | 2,200kg | ||
| Power consumption | 5.0KVA | ||
Backworking Attachment
| Item | SR-20J typeN | ||
|---|---|---|---|
| Max.chucking diameter | ø20mm(25/32in) | ||
| Max.length for front ejection | 80mm(3-5/32in) | ||
| Max.parts projection length | 30mm(1-11/64in) | ||
| 4-spindle backworking unit | Number of tools | 4-6 tools:OP | |
| Max.drilling capability | Stationary tool | ø8mm(5/16in) | |
| Power-driven tool | ø5mm(3/16in) | ||
| Max.tapping capability | Stationary tool | M8×P1.25 | |
| Power-driven tool | M4×P0.7 | ||
| Sub spindle indexing angle | C-axis control/15°:OP | ||
| Sub spindle speed | max.8,000min-1 | ||
| Sub spindle motor | 1.5kw(Continuous)/2.2kw(15min.150%ED) | ||
