TSP828L series
Label Printer with Automatic Label Peeler
TSP828L
Features
High speed,high resolution output
Fully adjustable label widths
Easy-Load
Automatic label peeler as standard
(can be easily disabled when required)
Multiple interface versions
New low cost Ethernet option
Large capacity paper roll with rear feed security feature
Star Line & Page Mode
Barcode support:
Ladder & 2 Dimensional
Transmissive / or Reflective sensor for top of form recognition
Paper End and Label Peeler sensors
WindowsTM Drivers on CD included with printer
Dimensions
Specifications
Please click here for Catalog Download Service.
| Printer Method | Direct Linear Thermal |
|---|---|
| Print Speed | up to 150 mm/second/35lps @ 6lpi (47 lps @ 8 lpi) |
| Papere Feed Speed | 150mm/second |
| Resolution | 203 dpi (8 dots /mm) |
| Print Width | 104mm maximum |
| Interface Versions | TSP828-Non Interface version TSP828UN-Dual Interface version(USB/RS232C Serial) TSP828C-Parallel Interface version |
| Interface options | USB / RS232C Serial / Parallel / Ethernet |
| Emulation | Star Line Mode/Page Mode |
| Paper Specifications: Wdth |
41 to 108mm(±0.5mm)thermal label 45 to 112mm(±0.5mm)thermal paper roll |
| Roll Diameter | maximum 110mm |
| Thickness | up to 190 µm maximam |

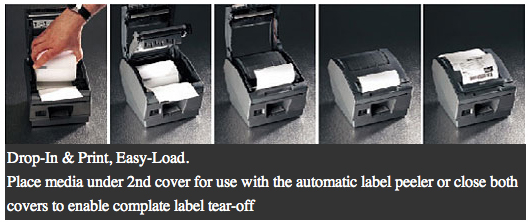

| Paper Loading | "Drop-In & Print",Easy Load |
| Reliability: Printer |
MCBF 37 million lines |
| Print Head | 100km |
| Power Supply | 24V DC±10% Adaptor : PS60A(Option) |
| Operating Conditions |
Temperature5~45°C Humidity 10% to 90% RH(without condensation) |
| Strage Conditions (not including paper) |
Temperature-20~+60°C Humidity 10% to 90% RH(without condensation) |
| Printer Dimensions | 180(w) × 213(d) × 157(h) mm Approx.2kg not including I/F board,paper roll etc. |
