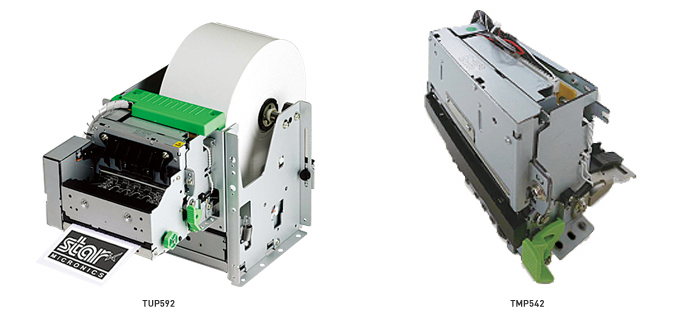

TUP500 series

3 Inch Thermal Printer Mechanism with Presenter Function, Flexible Media (Paper Width: 45-82.5mm)

  • Receipt
  • Ticket
  • KIOSK
  • High Speed
  • Graphic Raster
  • 58-80mm adjustable
  • Auto Cutter
  • Top Margin selectable
  • Barcode
  • 2 Color Printing
TUP500 series

Features

High speed output (Up to 220mm per second)
Flexible media (Paper width: Min. 45mm to Max. 82.5mm)
Barcodes receipts, tickets, labels(TUP542) etc. are all printed on media from 0.065mm to 0.15mm thick allowing for complete application functionality
25cm paper roll holder for horizontal or vertical use (max. capacity 18cm in vertical mode)(Option)
Paper exit guide / snout with flashing LED attraction mode(Option)
All models supplied without interface with low cost USB, Ethernet & traditional interface options(Option)
Compatible with majority of operating platforms including OPOSTM, Java-POSTM,LinuxTM, ESC/POSTM and MicrosoftTM Windows with WHQL certification

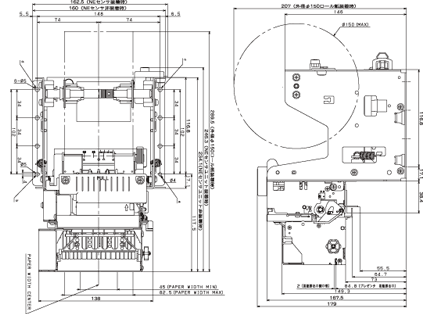

Dimensions

Specifications

Please click here for Catalog Download Service.

Item TUP592
Print Method Direct Thermal Line Printing
Print Resolution 8 or 16dot(H) x 8dot (V) / mm (203 or 406 x 203dpi)
Printable Width Max. 80mm with 1st column print
Print Speed up to 220mm per second (for use with suitable 80/82.5mm high sensitivity paper with standard 15cm roll diameter)
Default speed 180mm per second
Paper Feed Speed up to 220mm per second
Paper Loading Semi Automatic with easy ''Lift & Tilt'' Functionality
Paper
specifications		 Media Thermal Paper Rolls
2 Colour Printing Special thermal paper required
Width Min. 45mm to Max 82.5mm
Roll Diameter 15cm/6'' with 25.4cm/10'' option (RHU-T500)
Thickness 0.065 to 0.15 mm
Paper Sensors Black Mark / Paper End / Paper Low Sensors
Auto cutter Type Full Cut
Life 1.0 million cuts (paper thickness: 0.065 to 0.1 mm)
0.3 million cuts (paper thickness: 0.1 to 0.15 mm)
MCBF 60 million lines MCBF
Control Board
(TBD500)		 Flash ROM 16M bit
Logo Store 4M bit
Emulations Star Line & Page Mode, ESC/POSTM
Barcodes UPC-A/E, JAN/EAN-8/13, ITF, CODE39/93/128,
CODABAR (NW-7), PDF417, QR
Code Pages Star Mode = 40 + 1 blank,
ESC/POSTM Mode = 10 + 1 blank
Presenter Unit
(PR500)		 Driving Motor 1 DC motor
Paper Loop Upper Side Loop
Ejecting Speed 300 mm / sec.
Paper Length 75 mm to 300 mm
Sensors 3 paper sensors including presenter
Life 1 million receipts
Operating Conditions 0°C to 50°C
10% to 80% RH
(without condensation)
Storage Conditions -20°C to 60°C
10% to 90% RH
(at 40°C, without condensation)
Power Supply 24V DC±10%
Adaptor : PS60A(Option)
Interface Option RS232C Serial, 9-Pin Serial, Parallel, USB, Ethernet
Dimensions TUP592: 160 mm(W) x 234.1 mm (D) x 179 mm (H)
Weight Approx. 2.5 kg
