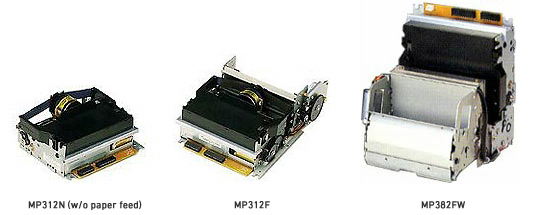

MP300 series
High Quality & High Performance
Features
Three adjustable paper widths
Bi-directional high speed printing : 4.2 to 3.2 line/sec.
Stepping motor allows fast (3 inches/sec.) and smooth paper feed
Long lasting ribbon cassette (2.6 million characters)
High durability (MCBF : 5 million lines, Head : 100 million characters)
Fits into receipt and ticketing devices
Specifications
Please click here for Catalog Download Service.
| Item | MP312F-24 | MP382FW-24 | MP312N-24 | |
|---|---|---|---|---|
| Print method | 9-pin serial impact dot matrix | |||
| Print direction | Bi-directional | |||
| Number of columns | 40 (15 CPI) | |||
| Character font | 7 x 9 or 5 x 9 | |||
| Dot spacing (mm) | 0.330 (H) x 0.353 (V) | |||
| Total number of dots | 200 dot / line | |||
| Line spacing | 1 / 144" | N/A | ||
| Print speed | 3.2 lines / sec. | 3.3 lines / sec. | ||
| Paper feed speed | Approx.3 lines / sec. | - | ||
| Carriage motor | Type | DC motor | ||
| Supply voltage | DC24V ± 5% | |||
| Start current | Max.2A | |||
| Average current | Approx. 0.2A | |||
| Paper feed motor | Type | PM type stepping motor | N/A | |
| Supply voltage | DC24V±5% in operation DC4.2V in idle | N/A | ||
| Average current | Approx. 0.2A | N/A | ||
| Holding current | Approx.0.15A | N/A | ||
| Print head | Supply voltage | DC24V ± 1.2V | ||
| Current | Max.1.4A/pin | Max. 0.9A/pin | ||
| Pulse width | 340 ±5µs | |||
| Ink ribbon | Type | Cartridge cassette | ||
| Life (characters) | RC300B(Black)2.6million | |||
| Paper | Media | Roll paper | ||
| Type | Ordinary and carbonless copy paper | |||
| Width | 2.25" (57.5mm) 3" (76mm) 3.25" (82.5mm) |
3.25" (82.5mm) | N/A | |
| Diameter | Max. 3.35" (85mm) | N/A | ||
| Thickness | 0.07mm to 0.10mm (Single copy) | |||
| Copies | Three ply-max. 0.2mm Each paper should be 0.05mm to 0.08mm in thickness | |||
| Reliability | MCBF | 5 million lines | ||
| Print head | 100 million characters | |||
| Operating conditions | 0°C to 50° 10% to 80% RH (w/o condensation) | |||
| Storage conditions | -20°C to 70°C 5% to 95% RH (w/o condensation) | |||
| Voltage | Mechanism | 25V±5% 1.7A(Chemical capacitor is required) | ||
| Logic | 5V ±10%, 220mA | |||
| Weight | Approx. 0.77 kg | Approx. 1.45 kg | Approx.0.48 kg | |
