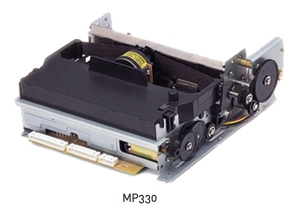

MP330 series

4.5/5 Inch Type Printer Machanism

Item		MP335S-12-A
Print method		9-pin serial impact dot matrix
Print direction		Bi-directional
Number of columns		68
Character font		7 x 9 or 9 x 9
Dot pitch (mm)		0.309 (H) x 0.353 (V)
Total number of dots		306
Line spacing		1 / 144
Print speed		2.3 lines / sec.
Paper feed speed		Approx.4 inches / sec.
Carriage motor	Type	DC motor
	Supply voltage	DC12V ±1.2V
	Start current	Max.3.5A
	Average current	Approx. 0.4A
Paper feed motor	Type	PM type stepping motor
	Supply voltage	DC12V±1.2V in operation DC1.1V in idle
	Average current	Approx. 0.52A
	Holding current	Approx.0.11A
Print head	Supply voltage	DC12V ±1.2V
	Current	Max.2.1A/solenoid (for 12 VDC, 400µs)
	Pulse width	400 ±5µs
Ink ribbon	Type	Cartridge cassette
Ink ribbon	Life (characters)	RC330B(Black)2.6million
Paper	Media	Sprocket fanfold
	Type	Ordinary and carbonless copy paper
	Width	5"(127mm)
	Thickness	0.07mm to 0.10mm (Single copy)
	Copies	Three ply-max. 0.2mm Each paper should be 0.05mm to 0.08mm in thickness
Reli- ability	MCBF	10 million lines
Reli- ability	Print head	100 million characters
Operating conditions		0°C to 50° 10% to 80% RH (w/o condensation)
Storage conditions		-20°C to 70°C 5% to 95% RH (w/o condensation)
Voltage	Mecha- nism	12V±1V 2.5A
Voltage	Logic	5V ±0.5V approx.200mA
Weight		0.95kg
