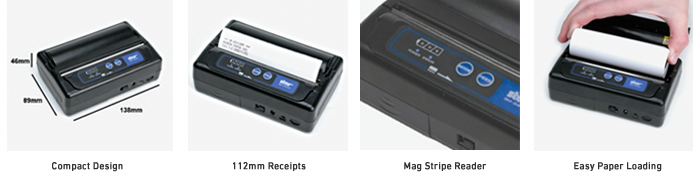

SM-S400 series

Field Service 112mm Portable Printer

Please click here for Catalog Download Service.

Model		SM-S400
Printer Case Color		Black
Printer Method		Direct Thermal Line Printing
Character Specifications:	Character Matrix	12 x 24 dots, 9 x 24 dots, 8 x 16 dots
	No. of Columns	Up to 96 columns
	Character Sizes	1.5 x 3.0 mm(WxH) (11 x 24 Font)
	Print Resolution	8 dot/mm (203 dpi)
Emulation		ESC/POS™
Interface versions		RS232C & Bluetooth (Ver. 2.1)
Print Speed		Up to 50 mm/second
Paper Specifications:	Media	Thermal Paper
	Width	112 mm (4 inch)
	Roll Diameter	40 mm
	Thickness	0.060 - 0.070 mm
Overall Dimensions (mm)		138(W) x 88(D) x 46(H)
Weight		321 g (Including Battery)
Power Voltage		7.4 V (1800 mAh)
Battery Running Time (on Auto Power Down Mode) at 5 minute printing intervals		11 Hours (17 Hours)
Print Width		104 mm
Mag Stripe Reader		ISO Standard 1&2 Track (2&3 Optional)
LCD Display		N/A
Operating Conditions		0°C ∼ 40°C, 30% ∼ 80%RH
Print Head Life		50 km
Drop Test		1.0 m
Barcode	Barcodes	JAN/EAN/KAN8, JAN/EAN/KAN13, UPC-A/E., NW-7, Interleaved 2/5(ITF), CODE 39/93/128
Barcode	2D Code	QR Code, PDF417, Data Matrix
Others		-
