SCM-09C-J
Rectangular shape for saving space
Stereo application
Features
- Optimum design and characteristics for use in mobile communications equipment
- Square design for saving space
- High SPL in low range
- Lead wires connection

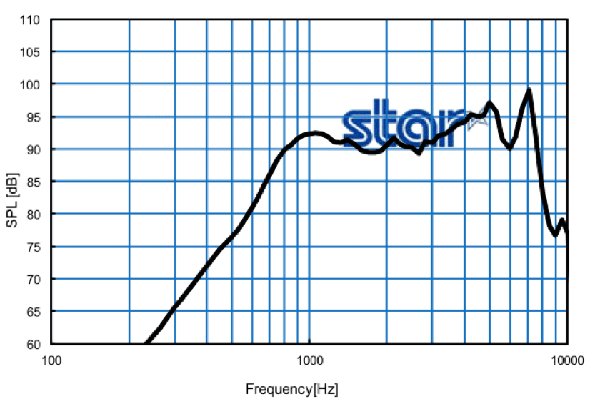

Frequency Response
| Conditions |
Measurement in the standard test fixture Measurement distance: 10cm Applied power: Rated input |
|---|---|
| Notes | The frequency curve shows a typical characteristic and it is not the guaranteed sound pressure level(SPL). |
Specifications
| Model Name | SCM-09C-J |
|---|---|
| SPL(dB/10cm) | 91.5 ± 3 |
| Rated Input(W) | 0.4(1.79Vrms) |
| Impedance(Ω) | 8 +0.8/-1.6 |
| Resonance Frequency(Hz) |
950 ± 100 |
|---|---|
| Operating Temperature(°C) |
-30 ~ +70 |
| Storage Temperature(°C) |
-40 ~ +85 |
| Mass(g) | 0.9 |

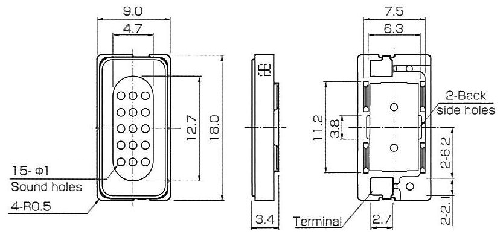

Dimensions
