TUP900 series

4 Inch Thermal Printer Mechanism with Presenter Function, Flexible Media (Paper Width: 80-112mm)

  • Receipt
  • Ticket
  • KIOSK
  • High Speed
  • Graphic Raster
  • Auto Cutter
  • Top Margin selectable
  • Barcode
  • 2 Color Printing
TUP900 series

Features

High speed output (Up to 150mm per second)
A4 to A6 Using the automatic scalable raster driver
Up to 10" paper roll support (option)
"Lift & Tilt" easy paper loading
Flexible media (Paper width: Min. 80mm to Max. 112mm)
Black and Red printing available
Presenter prevents paper jams & handles varying document lengths
Document capture
Star Line Mode & Star Page Mode, ESC/POSTM to follow

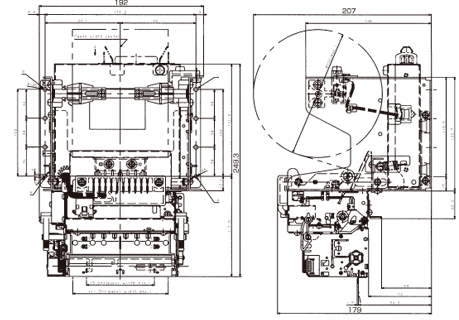

Dimensions

Specifications

Please click here for Catalog Download Service.

Item TUP992-24 (TMP942 & Presenter)
Print Method Direct Thermal Line Printing
Print Resolution 8 dot(H) x 8dot (V) / mm (203 DPI)
Print Area Max. 104 mm
Print Speed Max. 150 mm / sec.
Paper Feed Speed 150 mm / second
Paper Loading Semi Automatic
Paper
specifications
Media Thermal Paper Rolls
2 Colour Printing Special thermal paper required
Width 79.5 ±0.5mm(3.15") to 111.5±0.5mm (4.5")
Roll Diameter Max. 150 mm (Use of optional parts enables up to 245 mm)
Thickness 0.065 to 0.15 mm
Paper Sensors Black Mark / Paper End / Paper Low Sensors as standard
Auto cutter Type Full or Partial Cut (guillotine)
Full Cut only with Presenter PR900 and TUP992
Life 1.0 million cuts (paper thickness: 0.065 to 0.1 mm)
0.3 million cuts (paper thickness: 0.1 to 0.15 mm)
MCBF 37 million lines MCBF
Control Board
(TBD900)
Flash ROM 8M bit
Logo Store 2M bit
Emulations Star Line & Page Mode, ESC/POSTM to follow
Barcodes UPC-A, UPC-E, JAN/EAN-8 JAN/EAN-13, ITF,
CODE39,CODE93, CODE128, CODABAR (NW-7),
(PDF417 & Maxicode to follow)
Code Pages Star Mode = 40, ESC/POSTM Mode = 6 & 1 blank
Presenter Unit
(PR900)
Driving Motor 1 DC motor
Paper Loop Upper Side Loop
Ejecting Speed 300 mm / sec.
Paper Length 75 mm to 300 mm
Sensors 3 paper sensors including presenter and document capture counter
Life 1 million receipts
Operating Conditions 0°C to 50°C
10% to 80% RH
(without condensation)
Storage Conditions -20°C to 60°C
10% to 90% RH
(at 40°C, without condensation)
Power Supply 24V DC±10%
Adaptor : PS60A(Option)
Interface RS232C Serial, 9-Pin Serial, Parallel, USB, Ethernet
Dimensions 192 mm(W) x 249.3 mm (D) x 179 mm (H)
Weight Approx. 2.84 kg
