MP292 series

Small and Reliable Slip Impact Printer Mechanism

  • Inspection Equip
  • MultiPly Form
  • Cut Sheet
  • 9-Pin Print Head
  • ANK

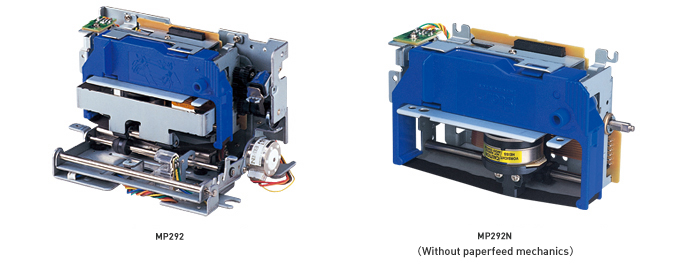

MP292 series

Features

Highly reliable 9-pin print head.
High speed printing : approx. 3.1 lines/sec.
With the automatic positioning function.

Specifications

Please click here for Catalog Download Service.

Item MP292-24G-A MP292N
Print method Impact dot matrix
Print direction Bi-directional
Number of columns 42 (7 x 9 half dot)
Character font 7 x 9 or 5 x 9
Dot spacing (mm) 0.30 (H) x 0.353 (V)
Total number of dots 210 dot / line
Line spacing 1 / 144" -
Print speed Approx. 3.1 lines / sec.
Paper feed speed Approx.3.5 inches / sec. (when printing) -
Carriage
motor
Type DC motor
Supply voltage DC24V ± 1.2V
Start current Max. approx. 1.5A
Average current Approx. 0.15A
Paper feed
motor
Type PM type stepping motor N/A
Supply voltage DC24V±V1.2 in operation
DC4.2V in idle
N/A
Average current Approx. 0.28A N/A
Holding current Approx.0.08A N/A
Print head Supply voltage DC24V ± 1.2V
Current Max.1.1A/solenoid
(for 24 VDC, 385µs)
Max.0.9A/solenoid
(for 24 VDC, 355µs)
Ink
ribbon
Type Cartridge cassette
Life (characters) RC200B(Black)1.5million
Paper Media Single sheet
Size 80 (W) x 80 (L) mm to 182 (W) x 257 (L) mm
Thickness 0.09mm to 0.20mm (Single copy)
Copies Three ply-max. 0.2mm
Each paper should be 0.12mm to 0.25mm in thickness
-
Reliability MCBF 2.5 million lines
Print head 70 million characters
Operating conditions 0°C to 50°
10% to 80% RH
(w/o condensation)
Storage conditions -20°C to 70°C
5% to 95% RH
(w/o condensation)
Voltage Mechanism 24V±5%
Logic 5V±5% approx.60mA
Weight 1.2 kg 0.28 kg
