3.4. SMBluetoothManager

Class to set Bluetooth settings

Warning

It can not be used with SMPort Class at the sime time.

• Constant

  Name	Contents
  SMDeviceType	Constants of Printer Type
  SMBluetoothSecurity	Constants of Bluetooth security type
  SMBluetoothSettingCapability	Constants of enable / disable information of the Bluetooth security type

• Constructor

  Name	Contents
  initWithName	Creates the instance.

• Property

  Name	Contents
  portName	This method gets the port name specified by the constructor.
  deviceType	The type of the printer to be connected.
  opened	Shows whether the port is opened.
  deviceName	Bluetooth device name
  iOSPortName	iOS Port Name
  autoConnect	AutoConnection
  security	Bluetooth security type
  pinCode	The PIN Code to be used for pairing.
  deviceNameCapability	This method gets the setting enable / disable information of the Bluetooth device name.
  iOSPortNameCapability	The setting enable / disable information of the iOSPor name.
  autoConnectCapability	enable / disable information of the AutoConnection
  securityTypeCapability	This method gets the setting enable / disable information of the Bluetooth security type
  pinCodeCapability	The setting enable / disable information of the PIN Code.

• Method

  Name	Contents
  open	Opens a port for communicating with the printer.
  loadSetting	Gets the value specified from the printer.
  close	Closes a port for communicating with the printer.
  apply	Set the specified value to the printer

Supported Method / Parameter for each model.

Model/Emulation	mC-Print2	mC-Print3	mC-Label3	mPOP	FVP10	TSP100IV	TSP100IIIW	TSP100IIIBI	TSP100IIIU	TSP100IIU+	TSP100ECO	TSP100U	TSP100GT	TSP100LAN	TSP650II	TSP650IISK	TSP700II	TSP800II	SM-S210i		SM-S220i		SM-S230i		SM-T300i/T300		SM-T400i		BSC10	SM-L200	SM-L300	SP700
	StarPRNT	StarPRNT	StarPRNT	StarPRNT	StarLine	StarPRNT	StarGraphic	StarGraphic	StarGraphic	StarGraphic	StarGraphic	StarGraphic	StarGraphic	StarGraphic	StarLine	StarLine	StarLine	StarLine	StarPRNT	EscPosMobile[1]	StarPRNT	EscPosMobile[1]	StarPRNT	EscPosMobile[1]	StarPRNT	EscPosMobile[1]	StarPRNT	EscPosMobile[1]	EscPos	StarPRNT	StarPRNT	StarDotImpact
open	✔	✔	✔	✔	✔	-	-	✔	-	-	-	-	-	-	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	-	✔	✔	✔
loadSetting	✔	✔	✔	✔	✔	-	-	✔	-	-	-	-	-	-	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	-	✔	✔	✔
close	✔	✔	✔	✔	✔	-	-	✔	-	-	-	-	-	-	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	-	✔	✔	✔
apply	✔	✔	✔	✔	✔	-	-	✔	-	-	-	-	-	-	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	-	✔	✔	✔
deviceNameCapability	✔	✔	✔	✔	✔	-	-	✔	-	-	-	-	-	-	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	-	✔	✔	✔
deviceName	✔	✔	✔	✔	✔	-	-	✔	-	-	-	-	-	-	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	-	✔	✔	✔
iOSPortNameCapability	✔	✔	✔	✔	✔	-	-	✔	-	-	-	-	-	-	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	-	✔	✔	✔
iOSPortName	✔	✔	✔	✔	✔	-	-	✔	-	-	-	-	-	-	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	-	-	-	✔
pinCodeCapability	✔	✔	✔	✔	✔	-	-	✔	-	-	-	-	-	-	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	-	✔	✔	✔
pinCode	-	-	-	-	✔	-	-	-	-	-	-	-	-	-	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	-	✔	✔	✔
autoConnectCapability	✔	✔	✔	✔	✔	-	-	✔	-	-	-	-	-	-	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	-	✔	✔	✔
autoConnect	✔	✔	✔	✔	✔	-	-	✔	-	-	-	-	-	-	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	-	-	-	✔
securityTypeCapability	✔	✔	✔	✔	✔	-	-	✔	-	-	-	-	-	-	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	-	✔	✔	✔
security	-	-	-	-	✔[2]	-	-	-	-	-	-	-	-	-	✔[2]	✔[2]	✔[2]	✔[2]	✔[4]	✔[4]	✔[3]	✔[3]	✔[4]	✔[4]	✔[4]	✔[4]	✔[4]	✔[4]	-	✔[3]	✔[3]	✔[2]
portName	✔	✔	✔	✔	✔	-	-	✔	-	-	-	-	-	-	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	-	✔	✔	✔
portSettings	✔	✔	✔	✔	✔	-	-	✔	-	-	-	-	-	-	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	-	✔	✔	✔
timeoutMillis	✔	✔	✔	✔	✔	-	-	✔	-	-	-	-	-	-	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	-	✔	✔	✔
deviceType	✔	✔	✔	✔	✔	-	-	✔	-	-	-	-	-	-	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	-	✔	✔	✔
opened	✔	✔	✔	✔	✔	-	-	✔	-	-	-	-	-	-	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	-	✔	✔	✔

[1]	F/W Version 3.0 or later is required.

[2]	The SecurityType that can be set and acquired is PIN code or SSP.

[3]	The SecurityType that can be set and retrieved is PIN code or Disable.

[4]	Firmware version less than 5.0 : The SecurityType that can be set and retrieved is PIN code or Disable. Firmware version 5.0 or later : The SecurityType that can be set and retrieved is PIN code, SSP, SSP Numeric Comparison or Disable.

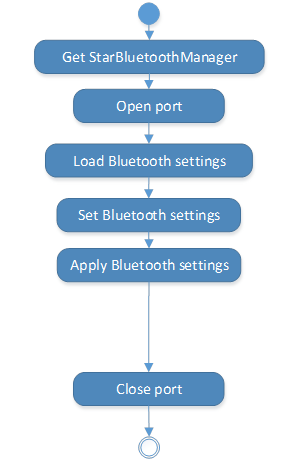

3.4.1. Bluetooth setting change flow using StarBluetoothManager

Using the StarBluetoothManager class, follow the steps below to change the printer’s Bluetooth settings.

3.4.2. SMDeviceType

Constants of Printer Type.

• Declaration

  typedef enum _SMDeviceType {
      SMDeviceTypeDesktopPrinter,
      SMDeviceTypePortablePrinter,
  } SMDeviceType;


• Constants

  Name	Contents
  SMDeviceTypeDesktopPrinter	Desktop Printer
  SMDeviceTypePortablePrinter	Portable Printer

Constant for each model.

Model	Emulation	Constants
mC-Print2	StarPRNT	SMDeviceTypePortablePrinter
mC-Print3	StarPRNT	SMDeviceTypePortablePrinter
mC-Label3	StarPRNT	SMDeviceTypePortablePrinter
mPOP	StarPRNT	SMDeviceTypePortablePrinter
FVP10	StarLine	SMDeviceTypeDesktopPrinter
TSP100IIIBI	StarGraphic	SMDeviceTypeDesktopPrinter
TSP650II	StarLine	SMDeviceTypeDesktopPrinter
TSP650IISK	StarLine	SMDeviceTypeDesktopPrinter
TSP700II	StarLine	SMDeviceTypeDesktopPrinter
TSP800II	StarLine	SMDeviceTypeDesktopPrinter
SM-S210i	StarPRNT	SMDeviceTypePortablePrinter
	EscPosMobile
SM-S220i	StarPRNT	SMDeviceTypePortablePrinter
	EscPosMobile
SM-S230i	StarPRNT	SMDeviceTypePortablePrinter
	EscPosMobile
SM-T300i/T300	StarPRNT	SMDeviceTypePortablePrinter
	EscPosMobile
SM-T400i	StarPRNT	SMDeviceTypePortablePrinter
	EscPosMobile
SM-L200	StarPRNT	SMDeviceTypePortablePrinter
SM-L300	StarPRNT	SMDeviceTypePortablePrinter
SP700	StarDotImpact	SMDeviceTypeDesktopPrinter

3.4.3. SMBluetoothSecurity

Constants of Bluetooth security type.

• Declaration

  typedef enum _SMBluetoothSecurity {
      SMBluetoothSecurityDisable,
      SMBluetoothSecuritySSP,
      SMBluetoothSecuritySSPNumericComparison,
      SMBluetoothSecurityPINcode
  } SMBluetoothSecurity;


• Constants

  Name	Contents
  SMBluetoothSecurityPINcode	Security by entering PIN code
  SMBluetoothSecuritySSP	Interface card model : Security by pressing the interface card button Others : No additional operations
  SMBluetoothSecuritySSPNumericComparison	Confirm that the authentication code displayed on the printer display or printed from the printer matches
  SMBluetoothSecurityDisable	No security

3.4.4. SMBluetoothSettingCapability

Constants of enable / disable information of the Bluetooth setting.

• Declaration

  typedef enum _SMBluetoothSettingCapability {
      SMBluetoothSettingCapabilitySupport,
      SMBluetoothSettingCapabilityNoSupport
  } SMBluetoothSettingCapability;


• Constants

  Name	Contents
  SMBluetoothSettingCapabilitySupport	Indicates the items and functions can be set for the printer that is currently connected.
  SMBluetoothSettingCapabilityNoSupport	Indicates the items and functions can not be set for the printer that is currently connected.

3.4.5. portName

This method gets the port name specified by the constructor.

• Declaration

  open var portName: String! { get }


3.4.6. deviceType

The type of the printer to be connected.

• Declaration

  open var deviceType: SMDeviceType { get }


3.4.7. opened

Shows whether the port is opened.

• Declaration

  open var opened: Bool { get }


3.4.8. deviceName

The Bluetooth device name.

To change setting, execute the apply method after this property changed.

1. Valid characters

   0-9 a-z A-Z ; : ! ? # $ % & , . @ _ - = Space / * + ~ ^ [ { ( ] } ) | \

2. Valid number of characters

   between 1 to 16 characters

3. Notes

   In case of Bluetooth Low Energy, the changed Bluetooth names are effective after turning the device off and on and connecting again.

• Declaration

  open var deviceName: String!


3.4.9. iOSPortName

Acquires and specifies the iOS port name to be used with the StarIO for Bluetooth communication.

To change setting, execute the apply method after this property changed.

1. Valid characters

   0-9 a-z A-Z ; : ! ? # $ % & , . @ _ - = Space / * + ~ ^ [ { ( ] } ) | \

2. Valid number of characters

   between 1 to 16 characters

• Declaration

  open var iOSPortName: String!


3.4.10. autoConnect

Acquires and specifies the setting of the auto connection function.

To change setting, execute the apply method after this property changed.

• Declaration

  open var autoConnect: Bool


3.4.11. security

Acquires and specifies the Bluetooth security setting.

To change setting, execute the apply method after this property changed.

• Declaration

  open var security: SMBluetoothSecurity


3.4.12. pinCode

The PIN code.

It is not possible to acquire the current setting value.

To change setting, execute the apply method after this property changed.

1. Valid characters

   • 0-9 (SM-L200, SM-L300)

   • 0-9 a-z A-Z (other models)

2. Valid number of characters

   • 4 characters (SM-L200, SM-L300)

   • between 4 to 16 characters (other models)

• Declaration

  open var pinCode: String!


3.4.13. deviceNameCapability

The setting enable / disable information of the Bluetooth device name.

• Declaration

  open var deviceNameCapability: SMBluetoothSettingCapability { get }


3.4.14. iOSPortNameCapability

The setting enable / disable information of the iOSPort name.

• Declaration

  open var iOSPortNameCapability: SMBluetoothSettingCapability { get }


3.4.15. autoConnectCapability

The setting enable / disable information of the AutoConnection.

• Declaration

  open var autoConnectCapability: SMBluetoothSettingCapability { get }


3.4.16. securityTypeCapability

The setting enable / disable information of the Bluetooth security type.

• Declaration

  open var securityTypeCapability: SMBluetoothSettingCapability { get }


3.4.17. pinCodeCapability

The setting enable / disable information of the PIN code.

• Declaration

  open var pinCodeCapability: SMBluetoothSettingCapability { get }


3.4.18. initWithName

Creates the instance.

• Declaration

  public init!(portName: String!, deviceType: SMDeviceType)


• Parameter

  Parameter	Contents	Type
  portName	It is the same as the portName of the getPort method.	String
  deviceType	Constants of Printer Type	SMDeviceType

• Return value

  Contents	Type
  SMBluetoothManager object It returns nil when failed.	SMBluetoothManager

Refer to Bluetooth setting change flow using StarBluetoothManager about the procedure of change the Bluetooth Setting.

Note

SMBluetoothManagerFactory included in StarIO_Extension.xcframework can get the appropriate SMBluetoothManager object for the printer emulation.

3.4.19. open

Opens a port for communicating with the printer.

Important

Get the current settings by loadSetting method after conducting open method.

• Declaration

  open func open() -> Bool


• Parameter

  None

• Return value

  Contents	Type
  succeeded or failure	Bool

Refer to Bluetooth setting change flow using StarBluetoothManager about the procedure of change the Bluetooth Setting.

3.4.20. loadSetting

Gets the value specified from the printer.

• Declaration

  open func loadSetting() -> Bool


• Parameter

  None

• Return value

  Contents	Type
  succeeded or failure	Bool

Refer to Bluetooth setting change flow using StarBluetoothManager about the procedure of change the Bluetooth Setting.

3.4.21. close

Closes a port for communicating with the printer.

• Declaration

  open func close()


• Parameter

  None

• Return value

  None

Refer to Bluetooth setting change flow using StarBluetoothManager about the procedure of change the Bluetooth Setting.

3.4.22. apply

Set the value specified by the following methods to the printer.

• deviceName

• iOSPortName

• pinCode

• autoConnect

• security

• Declaration

  open func apply() -> Bool


• Parameter

  None

• Return value

  Contents	Type
  succeeded or failure	Bool

Refer to Bluetooth setting change flow using StarBluetoothManager about the procedure of change the Bluetooth Setting.
