SAG-40A
High sound pressure level, Optimized design and characteristics for the automotive instruments
Features
- Rich sound output & flat frequency response (Min. 90dB/10cm from 440Hz to 2,000Hz)
- Great durability against thermal shock (-40°C to 105°C / 1,000 cycles)
- Lead wires & connectors connection

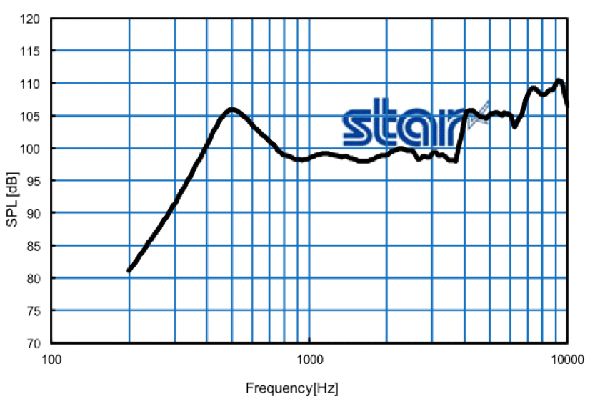

Frequency Response
| Conditions |
Measurement in the standard test fixture Measurement distance: 10cm Applied power: Rated input *Back cavity: More than 100mm³ |
|---|---|
| Notes | The frequency curve shows a typical characteristic and it is not the guaranteed sound pressure level(SPL). |
Specifications
| Model Name | SAG-40A |
|---|---|
| SPL(dB/10cm) | ≧90 |
| Rated Input(W) | 0.5(2.00Vrms) |
| Impedance(Ω) | 8 ± 1.2 |
| Resonance Frequency(Hz) |
500 ± 100 |
|---|---|
| Operating Temperature(°C) |
-40 ~ +105 |
| Storage Temperature(°C) |
-40 ~ +120 |
| Mass(g) | 12 |

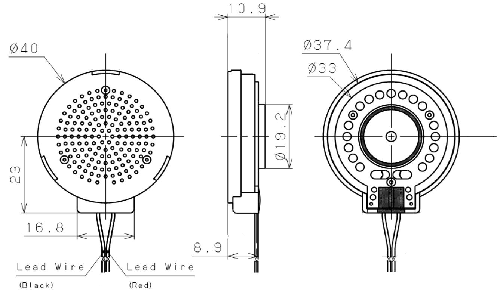

Dimensions
