SCG-16B-LS
High SPL, Thin type, Leaf Spring type
Features
- High-sound pressure level
- Thin type
- Suitable size for small products such as mobile phone, PDA, and etc.
- Easy attachment using a Leaf Spring contact

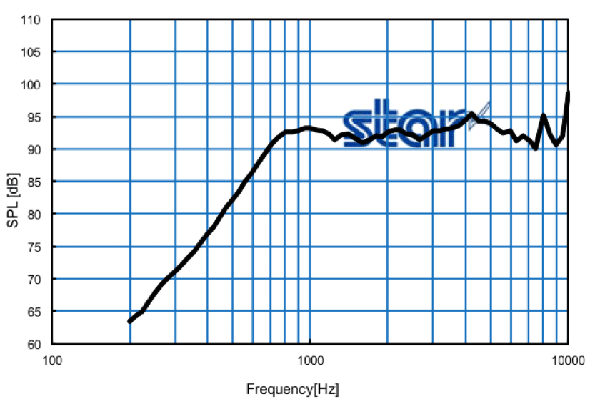

Frequency Response
| Conditions |
Measurement in the standard test fixture Measurement distance: 10cm Applied power: Rated input |
|---|---|
| Notes | The frequency curve shows a typical characteristic and it is not the guaranteed sound pressure level(SPL). |
Specifications
| Model Name | SCG-16B-LS |
|---|---|
| SPL(dB/10cm) | 92.5 ± 3 |
| Rated Input(W) | 0.3(1.55Vrms) |
| Impedance(Ω) | 8 ± 1.2 |
| Resonance Frequency(Hz) |
780 ± 100 |
|---|---|
| Operating Temperature(°C) |
-30 ~ +70 |
| Storage Temperature(°C) |
-40 ~ +85 |
| Mass(g) | 1.3 |

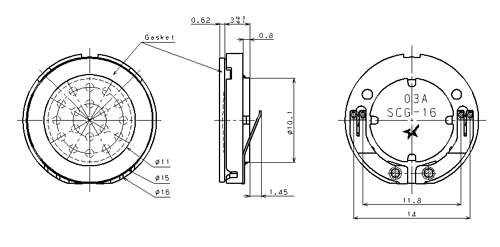

Dimensions
