SAC-30C
Optimized design and characteristics for the automotive instruments, wideband characteristics and thin size
Features
- Wide-band speaker from 440Hz to 3KHz
- Besides the usual playback speaker audio, also reproduces a "click" sound
- Optimum unit design assumes installation in automotive electrical equipment
- Highly reliable, withstands 1,000 heat cycle test, with upper operating temperature limits of 105°C, and storage temperature limit 120°C

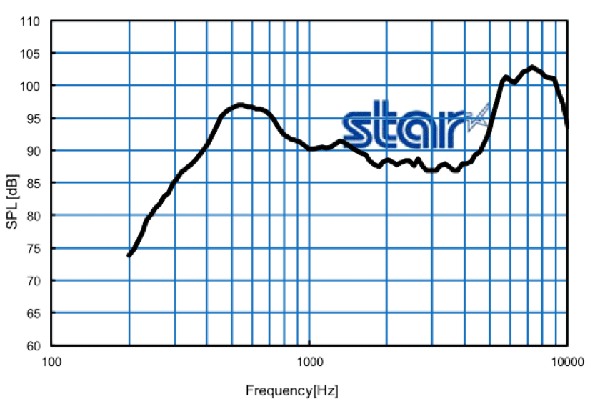

Frequency Response
| Conditions |
Measurement in the standard test fixture Measurement distance: 10cm Applied power: Rated input *Back cavity: More than 100mm³ |
|---|---|
| Notes | The frequency curve shows a typical characteristic and it is not the guaranteed sound pressure level(SPL). |
Specifications
| Model Name | SAC-30C |
|---|---|
| SPL(dB/10cm) | ≧86 |
| Rated Input(W) | 0.2(2.37Vrms) |
| Impedance(Ω) | 28 ± 4 |
| Resonance Frequency(Hz) |
- |
|---|---|
| Operating Temperature(°C) |
-40 ~ +105 |
| Storage Temperature(°C) |
-40 ~ +120 |
| Mass(g) | 8.3 |

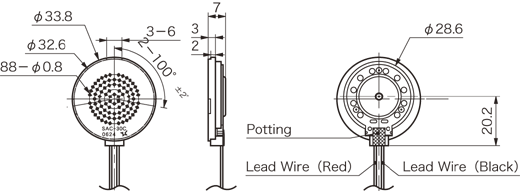

Dimensions
