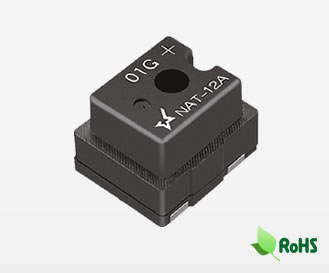

NAT Series
Reflowable magnetic sounder for automotive application
Features
- Reflowable magnetic sounder for automotive application
- Allows producing a "click" sound that is conventionally reproduced with relay
- Cover the frequencies from 1,700 Hz to 2,300 Hz
- Robust body enough to resist 1,000 cycles of thermal shock tests

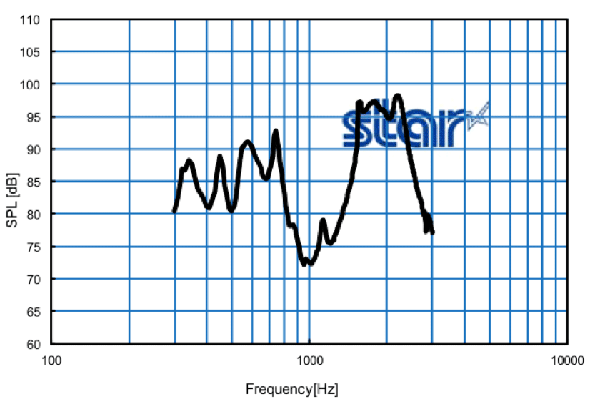

Frequency Response
- NAT-12A
| Conditions |
Measurement in the standard test fixture Measurement distance: 10cm Applied power: Rated input *Square wave 1/2 duty |
|---|---|
| Notes | The frequency curve shows a typical characteristic and it is not the guaranteed sound pressure level(SPL). |
Specifications
| Model Name | NAT-05A/NAT-12A |
|---|---|
| SPL(dB/10cm) | Min. 88 ~ |
| Rated Voltage(V) | 5.0 / 12.0 |
| Operating Voltage(V) | Max. 7.0 / 16.0 |
| Consumption Current (mA) | Max. 75 |
| Rated Frequency(Hz) | 2000 |
|---|---|
| Operating Temperature(°C) |
-40 ~ +105 |
| Storage Temperature(°C) |
-40 ~ +105 |
| Mass(g) | 3.0 |

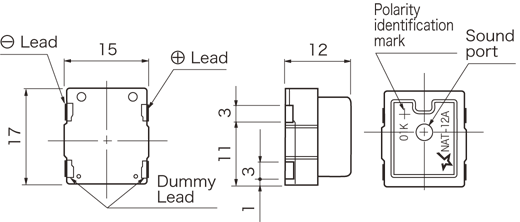

Dimensions
- NAT-12A
