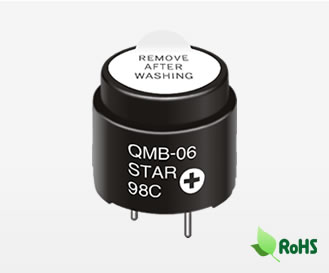

QMB(ø16mm) Series

QMB(ø16mm) Series

Dip-solderable and washable

Features

Dip-solderable and washable

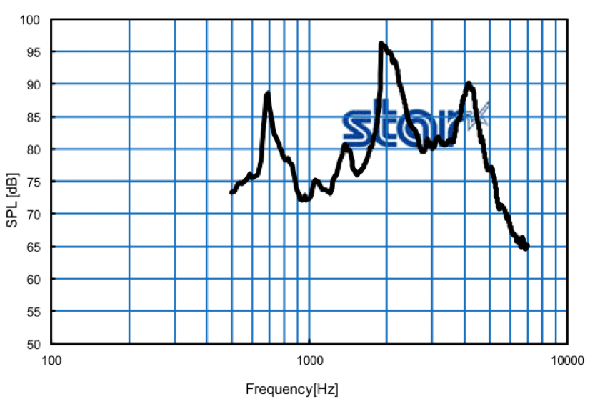

Frequency Response

QMB-06SL

Conditions	Measurement in the standard test fixture Measurement distance: 10cm Applied power: Rated input *Square wave 1/2 duty
Notes	The frequency curve shows a typical characteristic and it is not the guaranteed sound pressure level(SPL).

Specifications

Model Name	QMB-01SL/ QMB-06SL/ QMB-12SL
SPL(dB/10cm)	Min. 80/85/85
Rated Voltage(V)	1.5 / 6.0 / 12.0
Operating Voltage(V)	Max.3.0/12.0/18.0
Consumption Current (mA)	Max. 15.0/40.0/40.0

Rated Frequency(Hz)	2048
Operating Temperature(°C)	-30 ~ +85/ -40 ~ +85/ -40 ~ +100
Storage Temperature(°C)	-40 ~ +85/ -40 ~ +100/ -40 ~ +100
Mass(g)	7.0

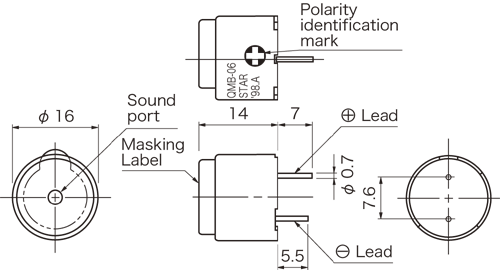

Dimensions

QMB-06SL
