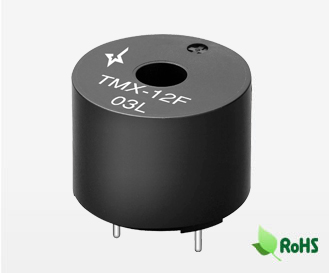

TMX Series
Low frequency driving type
High sound pressure
Features
- Low frequency driving type
- High sound pressure satisfying the strict sound pressure requirements of the European New Car Assessment Programme (Euro NCAP) and other organizations
- Outstanding durability under severe temperature environment
- Waterproof labels make these components washable
- Comfortable tone

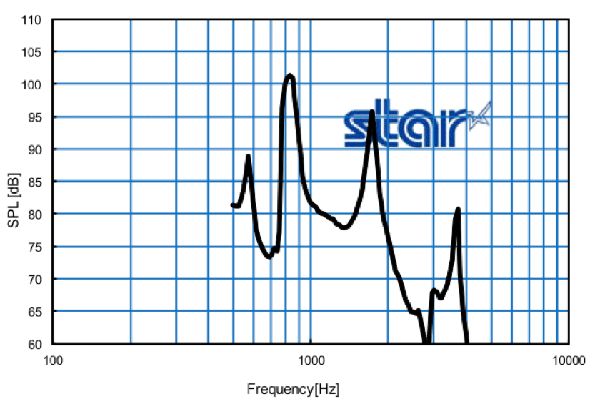

Frequency Response
- TMX-12F
| Conditions |
Measurement in the standard test fixture Measurement distance: 10cm Applied power: Rated input *Square wave 1/2 duty |
|---|---|
| Notes | The frequency curve shows a typical characteristic and it is not the guaranteed sound pressure level(SPL). |
Specifications
| Model Name | TMX-12F |
|---|---|
| SPL(dB/10cm) | Min. 95 |
| Rated Voltage(V) | 12.0 |
| Operating Voltage(V) | Max. 16 |
| Consumption Current (mA) | Max. 40.0 |
| Rated Frequency(Hz) | 850 |
|---|---|
| Operating Temperature(°C) |
-40 ~ +85 |
| Storage Temperature(°C) |
-40 ~ +85 |
| Mass(g) | 9 |

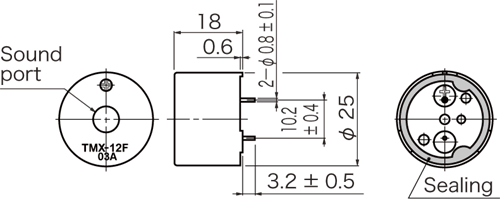

Dimensions
- TMX-12F
