Connect Tablet/PC (Bluetooth)

Connect (pair) the mC-Print3 main unit to a tablet or PC.
<Target models : MCP31LB, MCP31CB> Check Model

There are some restrictions related to simultaneously connecting multiple devices to a single printer. Make appropriate connections to suit your environment.
Precautions for Using Multi-interface <MCP31LB only>

It is convenient to use the dedicated app when setting a connection with a tablet or PC.
For details, refer to Use App.

Check the name of the device beforehand

Depending on the product, the "Device Name" displayed when pairing is different, and can be checked via [Dev Name] of ***Bluetooth Information*** printed via Self-Printing.

The setting method varies depending on the OS of the device you are using.

Connect from an iOS device <MCP31LB only>

Connect from an Android device

Connect from a Windows device

Connect from an iOS device<MCP31LB only>

The following steps must be performed after the power of the mC-Print3 is turned on. Turn On Power

1. Pairing with printer

  • Open the setting screen of the tablet and select Bluetooth.

  • Turn Bluetooth On.

  • Select the desired device name (mC-Print3-XXXXX).
    If the device name was changed, then select the device name that it was changed to.

  • If you are unable to connect, please refer to FAQ - Cannot establish Bluetooth communication.

2. Confirm that it has connected.

  • When connection is completed, "Connected" will be displayed next to the device name.

Important notes when [New Pairing Permission] is set to OFF

When [New Pairing Permission] is set to OFF due to it being in a state where security is enhanced, re-pairing with already connected tablets and new pairing with other tablets are not permitted.
When [New Pairing Permission] is set to OFF, do not perform "Forget Device" on the [Settings] screen for the already connected tablet.
If you accidentally delete the device, then perform Initialize Communication Settings, and re-pair the tablet.

If you wish to perform a new pairing, then change the [New Pairing Permission] setting from OFF to ON in the "mC-Print Utility" [Settings] - [Bluetooth Settings] and tap [Apply].

For details on mC-Print Utility, refer to Use App.

Connect from an Android device

The following steps must be performed after the power of the mC-Print3 is turned on. Turn On Power

1. Pairing with printer

  • Select "Settings" on the tablet screen, and open "Connected devices".

  • Select Bluetooth.

  • Set Bluetooth to "ON", and open "Pair new device".

  • Select the desired device name (mC-Print3-XXXXX).
    If the device name was changed, then select the device name that it was changed to.

  • If you are unable to connect, please refer to FAQ - Cannot establish Bluetooth communication.

2. Confirm that it has connected.

  • Once pairing is complete, the device name will be displayed under "Paired devices".

Important notes when [New Pairing Permission] is set to OFF

When [New Pairing Permission] is set to OFF due to it being in a state where security is enhanced, re-pairing with already connected tablets and new pairing with other tablets are not permitted.
When [New Pairing Permission] is set to OFF, do not perform "Forget Device" on the [Settings] screen for the already connected tablet.
If you accidentally delete the device, then perform Initialize Communication Settings, and re-pair the tablet.

If you wish to perform a new pairing, then change the [New Pairing Permission] setting from OFF to ON in the "mC-Print Utility" [Settings] - [Bluetooth Settings] and tap [Apply].

For details on mC-Print Utility, refer to Use App.

Connect from a Windows device

The following steps must be performed after the power of the mC-Print3 is turned on. Turn On Power

Windows 10

1. Pairing with printer

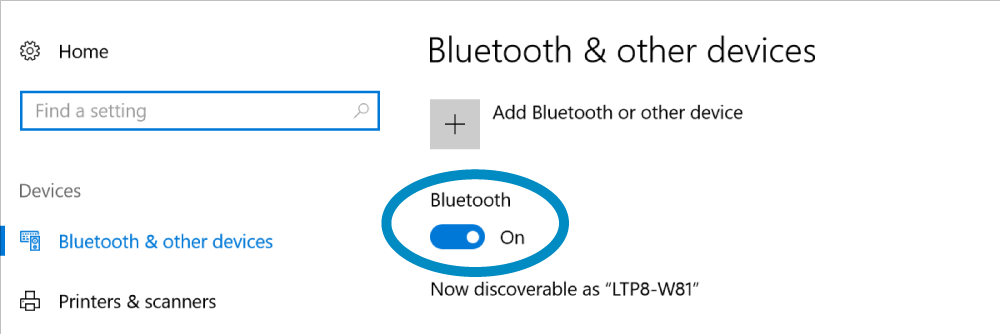

  • Open [Settings] from the Windows Start menu, select [Devices] - [Bluetooth & other devices].


  • Turn Bluetooth On.

  • Select [Printers & scanners] - [Add a printer or scanner].

  • Select the desired device name (mC-Print3-XXXXX), and click or tap [Add device].
    If the device name was changed, then select the device name that it was changed to.

  • If you are unable to connect, please refer to FAQ - Cannot establish Bluetooth communication.

2. Confirm that it has connected.

  • When connection is completed, "Connected" will be displayed.

Note

After a while, "Driver is unavailable" will be displayed, however, pairing is completed.


The device name created here cannot be used for the destination specified when printing from a Windows application. Create a separate printer queue using "Printer Software for mCollection".
For details on "Printer Software for mCollection", refer to Use App.

Important notes when [New Pairing Permission] is set to OFF

When [New Pairing Permission] is set to OFF, since it is in a state where security is increased, re-pairing with already connected tablets/PCs and new pairings with other tablets are not permitted.
If [New Pairing Permission] is disabled, do not perform "Remove Device" from connected (paired) tablets or PCs.
If you accidentally delete the device, then perform Initialize Communication Settings, and re-pair the tablet.

If you wish to perform a new pairing, then change the [New Pairing Permission] setting from OFF to ON in "Star Bluetooth Utility for mCollection".

For details on "Star Bluetooth Utility for mCollection", refer to Use App.

Windows 7/8.1

1. Pairing with printer

  • Open the control panel from the Start menu.
  • Start "Devices and Printers" and tap or click "Add a device".

  • Select the desired device name (mC-Print3-XXXXX), and tap or click [Next].
    If the device name was changed, then select the device name that it was changed to.

  • Pairing is then performed.

  • If you are unable to connect, please refer to FAQ - Cannot establish Bluetooth communication.

2. Confirm that it has connected.

  • When pairing is completed, the name of the device added will be displayed in "Devices and Printers".

Note

Depending on the display method, "Driver is unavailable" will be displayed, however, the pairing is completed.

The device name created here cannot be used for the destination specified when printing from a Windows application. Create a separate printer queue using "Star Bluetooth Utility for mCollection".
For details on "Star Bluetooth Utility for mCollection", refer to Use App.

Important notes when [New Pairing Permission] is set to OFF

When [New Pairing Permission] is set to OFF, since it is in a state where security is increased, re-pairing with already connected tablets/PCs and new pairings with other tablets are not permitted.
If [New Pairing Permission] is disabled, do not perform "Remove Device" from connected (paired) tablets or PCs.
If you accidentally delete the device, then perform Initialize Communication Settings, and re-pair the tablet.

If you wish to perform a new pairing, then change the [New Pairing Permission] setting from OFF to ON in "Star Bluetooth Utility for mCollection".

For details on "Star Bluetooth Utility for mCollection", refer to Use App.
