Use Peripherals

This product can be connected to and used with various peripherals, sold separately.
For instructions on how to use, how to install, and other matters, refer to the installation procedure that is linked to from each section, or to the online manual or the manual which was provided with the peripheral device.

Customer display SCD222U

Connect this unit to the USB port of the printer to display various information received from the host device.

Set Up External Devices (USB port)

Customer display SCD222U installation manual

1D barcode reader BCR-POP1

Connect this unit to the USB port of the printer to return the information read by the barcode reader to the host device.

Set Up External Devices (USB port)

1D barcode reader BCR-POP1 installation manual

Melody speaker mC-Sound

Connect this unit to the external device drive connector on the printer. The melody will sound synchronized with printing.
The settings can be performed in the printer driver and other programs.

Set Up External Devices (External device drive connector)

mC-Sound Installation and Use Guide

mC-Sound Setting Example

About compatible products

The TSP100IV is available for products manufactured after September 2021.

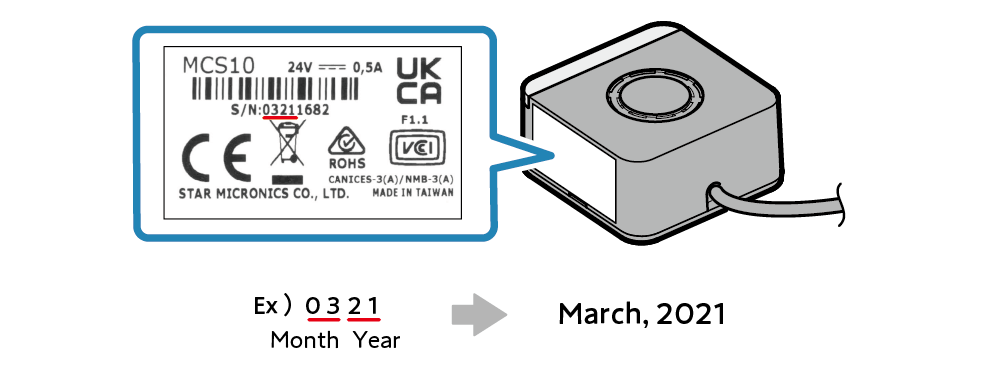

The production date can be confirmed by the serial number (S/N) on the ID sticker on the side of the mC-Sound unit.

Buzzer BU01

Connect this unit to the external device drive connector. The buzzer will ring synchronized with printing.
The settings can be performed in the printer driver and other programs.

Set Up External Devices (External device drive connector)

BU01 installation procedure

Wireless LAN Unit

Connect to the printer LAN connector and USB-A connector, and connect to a wireless LAN network.
Settings are available for each OS, and can be set using the utility.

Connect LAN Cable Set Up External Devices (USB Port)

Wireless LAN Unit Online Manual

Wireless LAN Unit Simple Setup Sheet



mC-Sound Setting Example

When installing the melody speaker mC-Sound inside the TSP100IV, refer to the illustrations below.

Caution

To ensure safety, be sure to turn OFF the power and disconnect the printer power plug from the electric outlet before beginning installation.

Installation example (Installing internally)

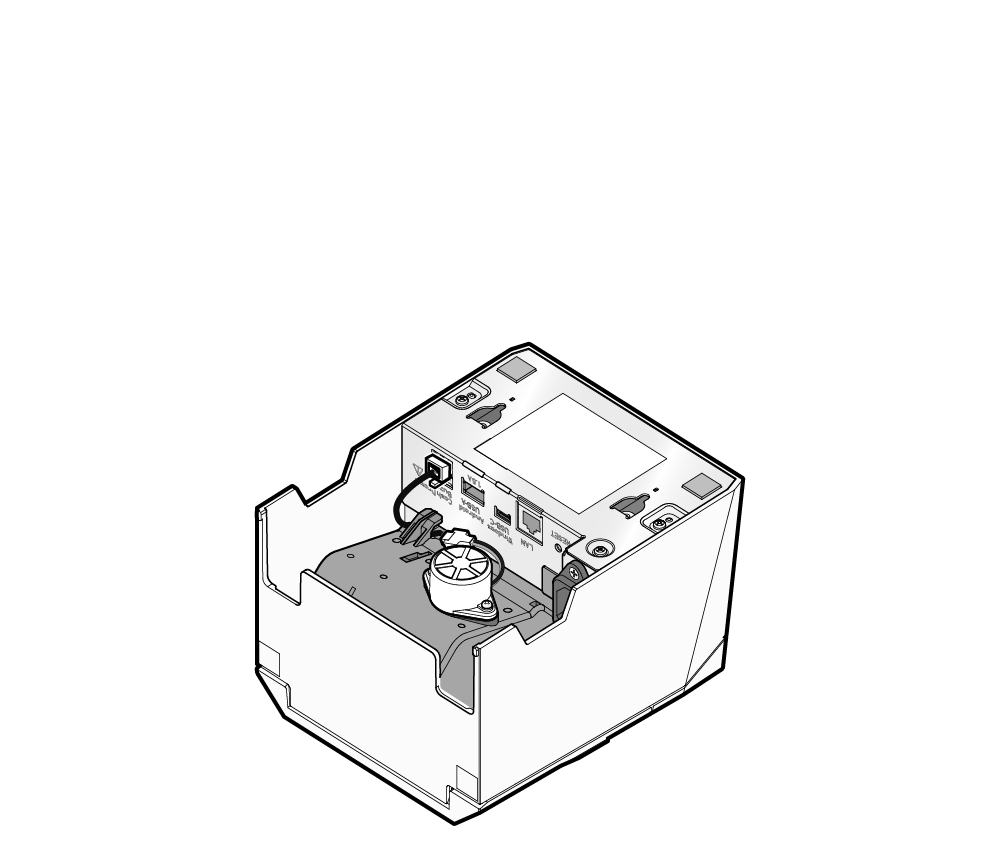

  • Attach mC-Sound to the space on the left side inside the printer, and connect the cable to the printer external device drive connector.


BU01 installation procedure

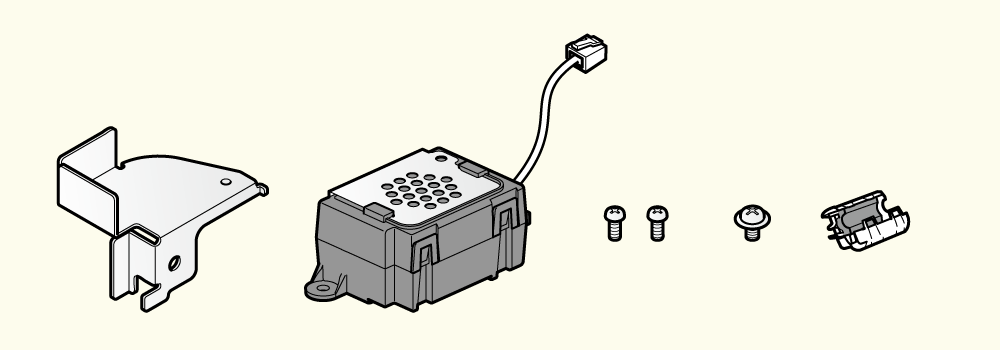

When installing buzzer BU01 onto the TSP100IV, follow the procedure below.

Caution

To ensure safety, be sure to turn OFF the power and disconnect the printer power plug from the electric outlet before beginning installation.

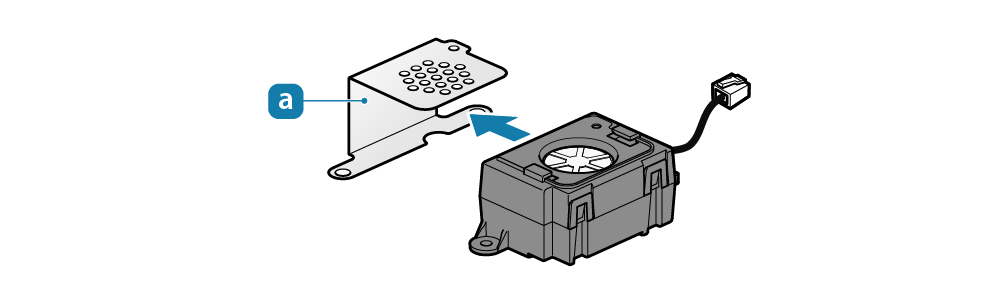

1. Remove the buzzer unit

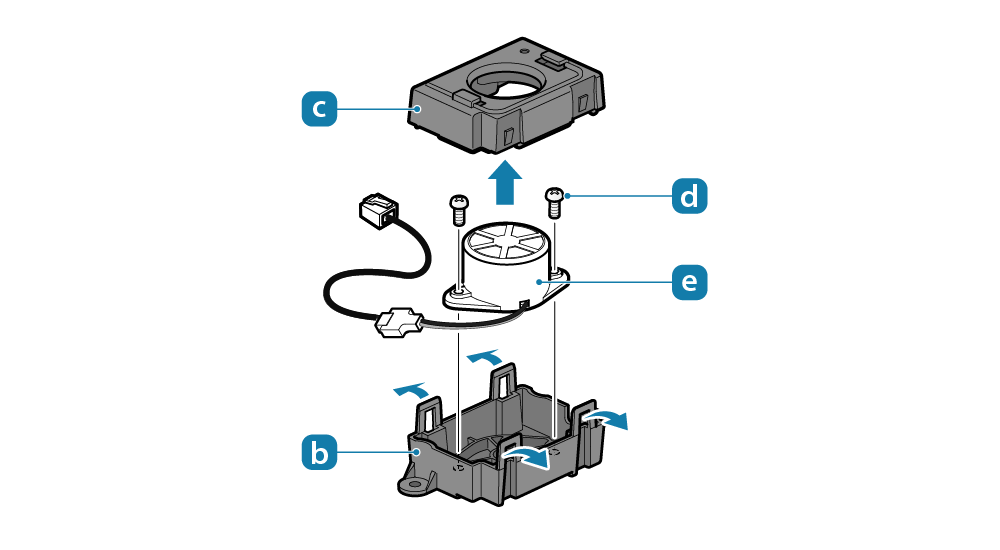

  • Slide the grounding bracket in the direction of the arrow to remove it.
  • Spread the four tabs of the lower case outward and disconnect the upper case .
    Remove the two screws , and remove the buzzer from the lower case.

2. Install onto the printer

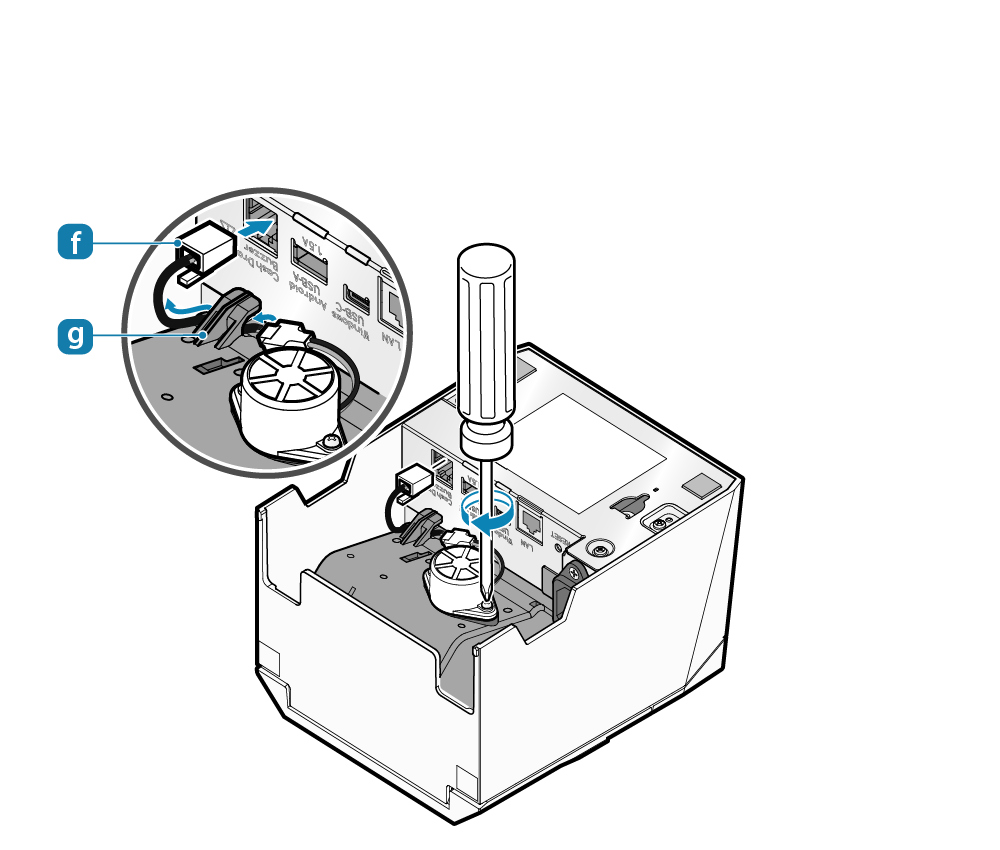

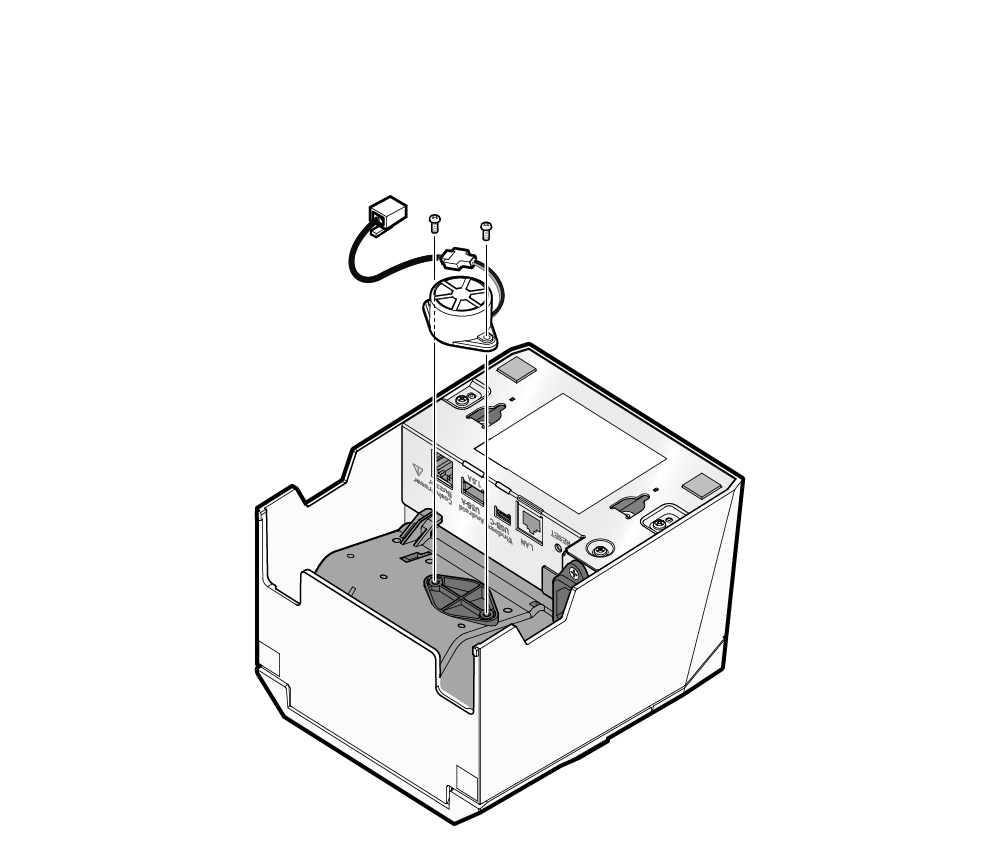

  • Install the buzzer onto the bottom of the printer. To install the buzzer, use the two screws that were removed in Step 1.
  • Fasten the buzzer securely, then plug the modular jack into the external device drive connector on the back of the printer.
  • Route the cable so it so it passes under the hook .
  • Installation is completed.
