Set Up Tablet/PC

This section explains how to set up a tablet/PC with the product.

Set Up Tablet

Set Up PC

Set Up Tablet

1. Set up tablet stand and tablet

Note

  • Depending on the type of device used, it may not be possible to set it on the tablet stand.
  • Confirm beforehand whether the tablet you are using can be set on the tablet stand.
  • Setting Example

    Note

  • When placing the tablet on a surface, the tablet must be placed within.
  • If anything over the maximum withstanding weight (8kg) is placed, it may prevent the cash drawer from closing.
    Take note before purchasing and installing a commercially available tablet stand.
  • The surface towards the front is not manufactured to withstand heavy weight.
  • Charging from mPOP
    • Connect the USB cable you use with the tablet to the USB port (1.5A) to charge your tablet.
      A USB cable for the tablet is not included in the accessories. Use a commercially available USB cable (or one that came with the tablet).

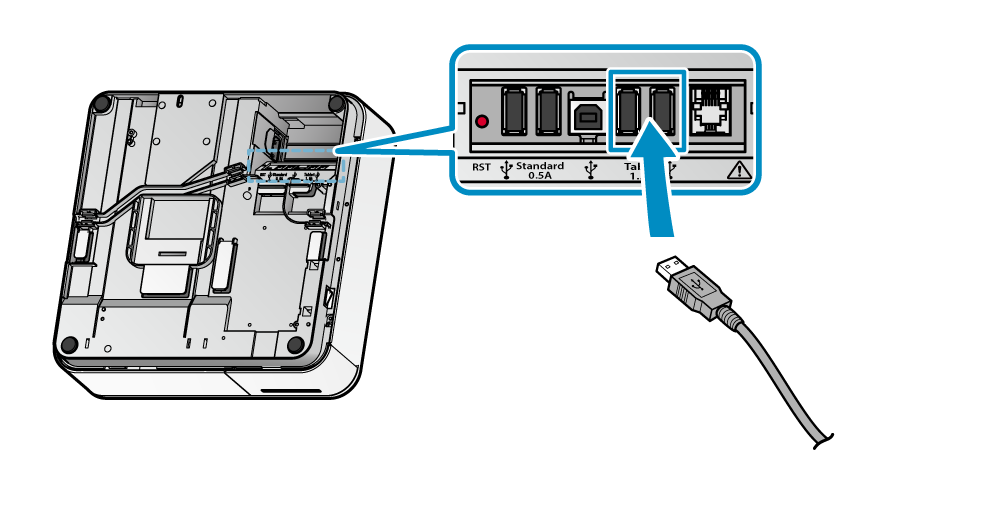

    • Connect the USB cable connector to the port on the bottom of mPOP (either of the ones indicated).

    Note

  • Depending on the type of tablet used, charging may not be possible.
  • If so, please use the charger that came with the tablet.
  • To wire the USB cable to the bottom of mPOP
    • There are 2 cable outlets to the right and left, and can be wired according to where mPOP and the peripherals are placed.
      When wiring the USB cable used for charging, refer to Connect Cables for details.
    Set Up PC

    By connecting a PC with mPOP, data communication with a PC is possible.

    1. Connect USB cable

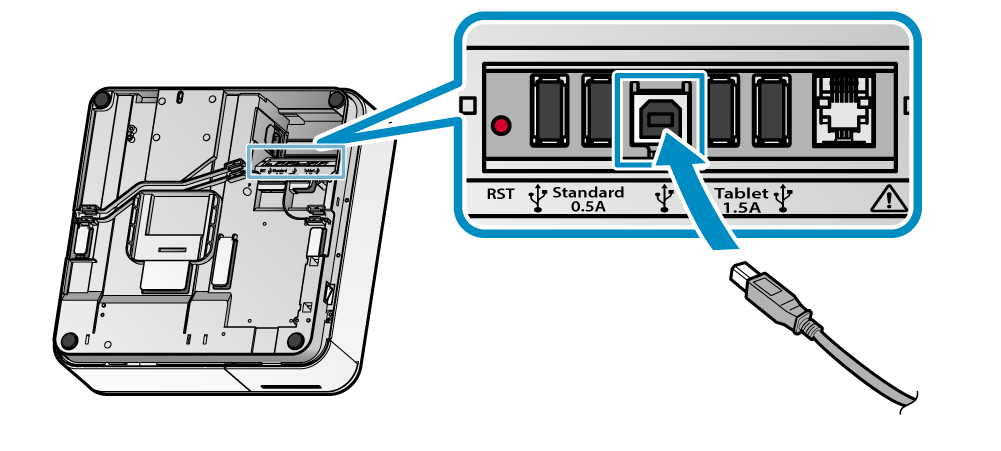

    • Connect the USB cable connector to the port located on the bottom of mPOP.
    • If a USB cable is not included, use a commercially available (or one that came with the PC) USB cable.

    2. Wire USB cable

    • There are 2 cable outlets to the right and left, and should be wired according to where mPOP and the PC are placed.
      For details, refer to Connect Cables.

    3. Install PC
